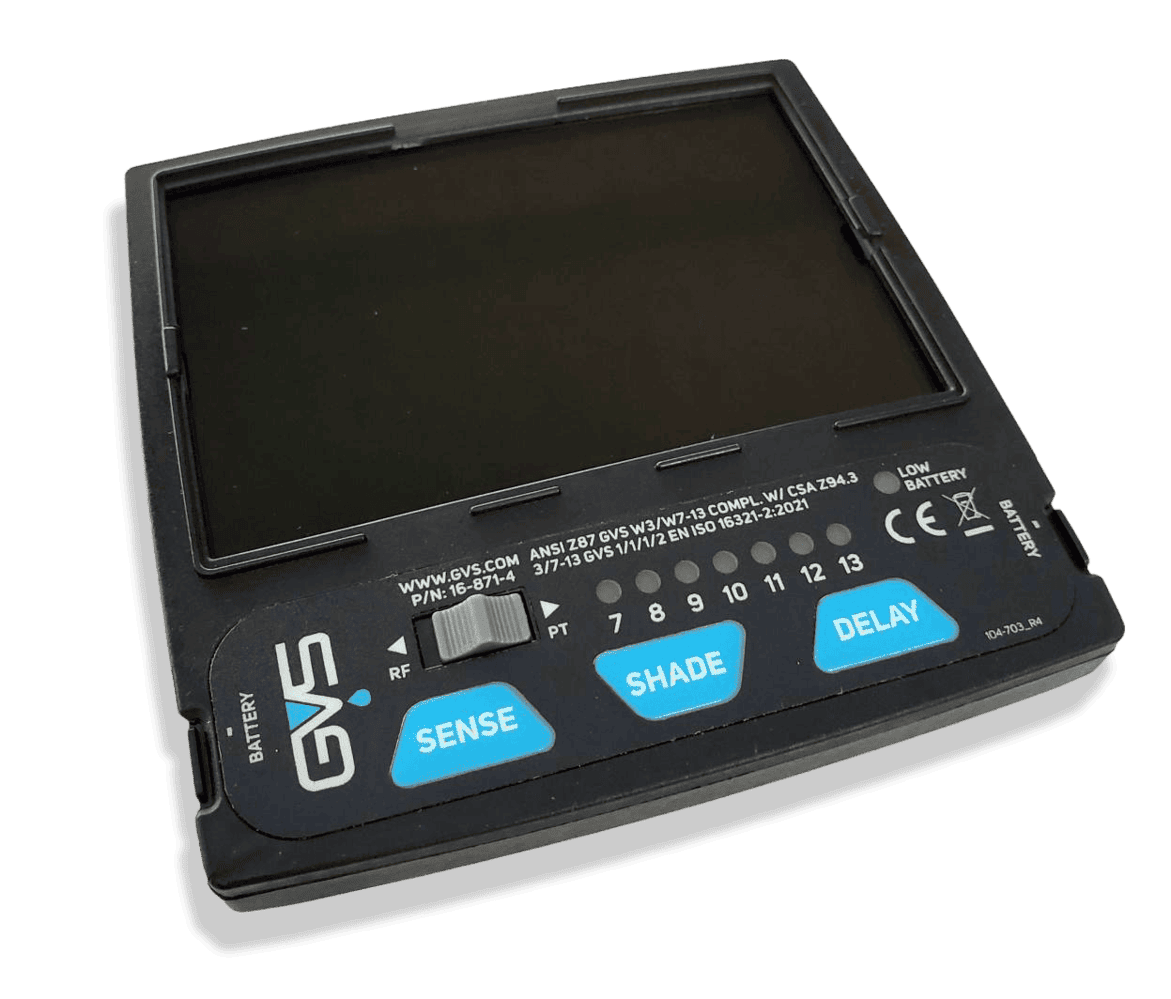

Auto Darkening Filter
The GVS ADF is an automatic welding filter is a device that protects the eyes from glare and dangerous radiation caused by welding.
An automatic welding filter combines a passive UV and a passive IR filter with an active filter, the luminous transmittance of which varies in the visible region of the spectrum, depending on the irradiance from the welding arc. The luminous transmittance of the automatic welding filter has an initial high value (light state).
After the welding arc strikes and within a defined switching time, the luminous transmittance of the filter changes to a low value (dark state).
Product Codes:
- Auto Darkening Filter 16-671-4
- Z-Link+ with Auto Darkening Filter 16-640
Properties
Required components:
- Z4 or Z-Link with Z-Link+
- FR cape or face seal
- Breathing tube
- Flow control device and breathing airline, or GVS PAPR
Cleaning Recommendations:
It is always necessary to keep the solar cells and the light sensors of the auto‑darkening welding filter free of dust and spatters: cleaning can be done with a soft tissue or a cloth with mild detergent, alcohol, or window cleaner.
Characteristics
- Certifications
- CE 2797, UKCA 0086, EN ISO 16321-2:2021. ANSI/ISEA Z87.1-2020. CSA Z94.3-20.
- Viewing area
- 2.64 x 3.96 in (67.3 x 100.6 mm).
- Weight
- 4.76oz (135g)
- Operating temperature
- 23°F to 131°F (-5°C to 55°C)
- Storage temperature
- -4°F to 157°F (-20°C to 70°C)
- UV / IR protection
- Maximum protection in light and dark modes
Applications
- Heavy industry welding (where hard hat is required)
- Arc spray/metalization
- Plasma/oxy-acetylene cutting
- Lancing and burning
