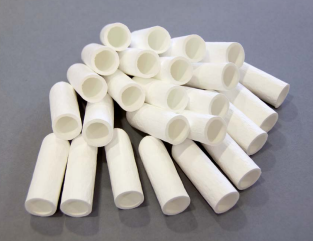

Extraction Thimbles

GVS extraction thimbles are manufactured in three versions:

High purity cellulose

Pure borosilicate glass microfiber

High purity quartz microfiber

The extraction thimbles are suitable for Soxhlet type, Tecator type or similar devices.

They are located in the extractor body, used to accommodate a sample of solid material to extract certain components out, with the addition of an appropriate solvent.

Properties

1. Cellulose extraction thimbles

GVS high-quality cellulose extraction thimbles are made from high-alpha cellulose cotton linters with rounded bottom.

2. Glass microfiber thimbles

GVS high-quality glass microfiber thimbles are made from 100% pure borosilicate fibers. They have special advantages since no binders of any kind are used in their manufacture process. They are particularly suitable when solvents that are incompatible with cellulose thimbles are present.

Characteristics

Cellulose extraction thimbles: Manufactured in high-alpha cellulose cotton linters
Glass microfiber thimbles: Manufactured in 100% pure borosilicate fibers without binders
Quartz microfiber thimbles: Manufactured in high-purity quartz microfiber filters (SiO2) free of binding elements or additives

Product Variants

Multiple versions of Extraction Thimbles are available.

Product Variants

53 available results

ET10010CC0Q00

Cellulose Extraction Thimbles 10x10mm

Box quantity

25

Dimension (mm)

10x10

Double Thickness

No
ET10050CC0Q00

Cellulose Extraction Thimbles, 10x50mm

Box quantity

25

Dimension (mm)

10x50

Double Thickness

No
ET16100CC0Q00

Cellulose Extraction Thimbles, 16x100mm

Box quantity

25

Dimension (mm)

16x100

Double Thickness

No
ET19090CC0Q00

Cellulose Extraction Thimbles, 19x90mm

Box quantity

25

Dimension (mm)

19x90

Double Thickness

No
ET19090DC0Q00

Cellulose Extraction Thimbles, Double Thickness, 19x90mm

Box quantity

25

Dimension (mm)

19x90

Double Thickness

Yes
ET20080CC0Q00

Cellulose Extraction Thimbles, 20x80mm

Box quantity

25

Dimension (mm)

20x80

Double Thickness

No
ET22060CC0Q00

Cellulose Extraction Thimbles, 22x60mm

Box quantity

25

Dimension (mm)

22x60

Double Thickness

No
ET22065CC0Q00

Cellulose Extraction Thimbles, 22x65mm

Box quantity

25

Dimension (mm)

22x65

Double Thickness

No
ET22080CC0Q00

Cellulose Extraction Thimbles, 22x80mm

Box quantity

25

Dimension (mm)

22x80

Double Thickness

No
ET22080DC0Q00

Cellulose Extraction Thimbles, Double Thickness, 22x80mm

Box quantity

25

Dimension (mm)

22x80

Double Thickness

Yes
ET23090CC0Q00

Cellulose Extraction Thimbles, 23x90mm

Box quantity

25

Dimension (mm)

23x90

Double Thickness

No
ET23100CC0Q00

Cellulose Extraction Thimbles, 23x100mm

Box quantity

25

Dimension (mm)

23x100

Double Thickness

No
ET25060CC0Q00

Cellulose Extraction Thimbles, 25x60mm

Box quantity

25

Dimension (mm)

25x60

Double Thickness

No
ET25080CC0Q00

Cellulose Extraction Thimbles, 25x80mm

Box quantity

25

Dimension (mm)

25x80

Double Thickness

No
ET25100CC0Q00

Cellulose Extraction Thimbles, 25x100mm

Box quantity

25

Dimension (mm)

25x100

Double Thickness

No
ET25100DC0Q00

Cellulose Extraction Thimbles, Double Thickness, 25x100mm

Box quantity

25

Dimension (mm)

25x100

Double Thickness

Yes
ET26060CC0Q00

Cellulose Extraction Thimbles, 26x60mm

Box quantity

25

Dimension (mm)

26x60

Double Thickness

No
ET26060CCTQ00

Cellulose Extraction Thimbles, 26x60mm

Box quantity

25

Dimension (mm)

26x60

Double Thickness

No
ET26080CC0Q00

Cellulose Extraction Thimbles, 26x80mm

Box quantity

25

Dimension (mm)

26x80

Double Thickness

No
ET27100CC0Q00

Cellulose Extraction Thimbles, 27x100mm

Box quantity

25

Dimension (mm)

27x100

Double Thickness

No
ET28022CC0Q00

Cellulose Extraction Thimbles, 28x22mm

Box quantity

25

Dimension (mm)

28x22

Double Thickness

No
ET28100CC0Q00

Cellulose Extraction Thimbles, 28x100mm

Box quantity

25

Dimension (mm)

28x100

Double Thickness

No
ET28100DC0Q00

Cellulose Extraction Thimbles, Double Thickness, 28x100mm

Box quantity

25

Dimension (mm)

28x100

Double Thickness

Yes
ET30077CC0Q00

Cellulose Extraction Thimbles, 30x77mm

Box quantity

25

Dimension (mm)

30x77

Double Thickness

No
ET30080CC0Q00

Cellulose Extraction Thimbles, 30x80mm

Box quantity

25

Dimension (mm)

30x80

Double Thickness

No
ET30100CC0Q00

Cellulose Extraction Thimbles, 30x100mm

Box quantity

25

Dimension (mm)

30x100

Double Thickness

No
ET30100DC0Q00

Cellulose Extraction Thimbles, Double Thickness, 30x100mm

Box quantity

25

Dimension (mm)

30x100

Double Thickness

Yes
ET33080CC0Q00

Cellulose Extraction Thimbles, 33x80mm

Box quantity

25

Dimension (mm)

33x80

Double Thickness

No
ET33080DC0Q00

Cellulose Extraction Thimbles, Double Thickness, 33x80mm

Box quantity

25

Dimension (mm)

33x80

Double Thickness

Yes
ET33094CC0Q00

Cellulose Extraction Thimbles, 33x94mm

Box quantity

25

Dimension (mm)

33x94

Double Thickness

No
ET33094DC0Q00

Cellulose Extraction Thimbles, Double Thickness, 33x94mm

Box quantity

25

Dimension (mm)

33x94

Double Thickness

Yes
ET33100CC0Q00

Cellulose Extraction Thimbles, 33x100mm

Box quantity

25

Dimension (mm)

33x100

Double Thickness

No
ET33100DC0Q00

Cellulose Extraction Thimbles, Double Thickness, 33x100mm

Box quantity

25

Dimension (mm)

33x100

Double Thickness

Yes
ET33118CC0Q00

Cellulose Extraction Thimbles, 33x118mm

Box quantity

25

Dimension (mm)

33x118

Double Thickness

No
ET35050CC0Q00

Cellulose Extraction Thimbles, 35x50mm

Box quantity

25

Dimension (mm)

35x50

Double Thickness

No
ET35080CC0Q00

Cellulose Extraction Thimbles, 35x80mm

Box quantity

25

Dimension (mm)

35x80

Double Thickness

No
ET35100CC0Q00

Cellulose Extraction Thimbles, 35x100mm

Box quantity

25

Dimension (mm)

35x100

Double Thickness

No
ET35100DC0Q00

Cellulose Extraction Thimbles, Double Thickness, 35x100mm

Box quantity

25

Dimension (mm)

35x100

Double Thickness

Yes
ET35150CC0Q00

Cellulose Extraction Thimbles, 35x150mm

Box quantity

25

Dimension (mm)

35x150

Double Thickness

No
ET40100CC0Q00

Cellulose Extraction Thimbles, 40x100mm

Box quantity

25

Dimension (mm)

40x100

Double Thickness

No
ET40123CC0Q00

Cellulose Extraction Thimbles, 40x123mm

Box quantity

25

Dimension (mm)

40x123

Double Thickness

No
ET43123CC0Q00

Cellulose Extraction Thimbles, 43x123mm

Box quantity

25

Dimension (mm)

43x123

Double Thickness

No
ET43125CC0Q00

Cellulose Extraction Thimbles, 43x125mm

Box quantity

25

Dimension (mm)

43x125

Double Thickness

No
ET50160CC0Q00

Cellulose Extraction Thimbles, 50x160mm

Box quantity

25

Dimension (mm)

50x160

Double Thickness

No
ET53145CC0Q00

Cellulose Extraction Thimbles, 53x145mm

Box quantity

25

Dimension (mm)

53x145

Double Thickness

No
ET60080CC0Q00

Cellulose Extraction Thimbles, 60x80mm

Box quantity

25

Dimension (mm)

60x80

Double Thickness

No
ET60080DC0Q00

Cellulose Extraction Thimbles, Double Thickness, 60x80mm

Box quantity

25

Dimension (mm)

60x80

Double Thickness

Yes
ET60120CC0Q00

Cellulose Extraction Thimbles, 60x120mm

Box quantity

25

Dimension (mm)

60x120

Double Thickness

No
ET60120DC0Q00

Cellulose Extraction Thimbles, Double Thickness, 60x120mm

Box quantity

25

Dimension (mm)

60x120

Double Thickness

Yes
ET75160CC0Q00

Cellulose Extraction Thimbles, 75x160mm

Box quantity

25

Dimension (mm)

75x160

Double Thickness

No
ET75160DC0Q00

Cellulose Extraction Thimbles, Double Thickness, 75x160mm

Box quantity

25

Dimension (mm)

75x160

Double Thickness

Yes
ET90180CC0Q00

Cellulose Extraction Thimbles, 90x180mm

Box quantity

25

Dimension (mm)

90x180

Double Thickness

No
ET90180DC0Q00

Cellulose Extraction Thimbles, Double Thickness, 90x180mm

Box quantity

25

Dimension (mm)

90x180

Double Thickness

Yes
