            • Multi-layers Cell factory, image 1

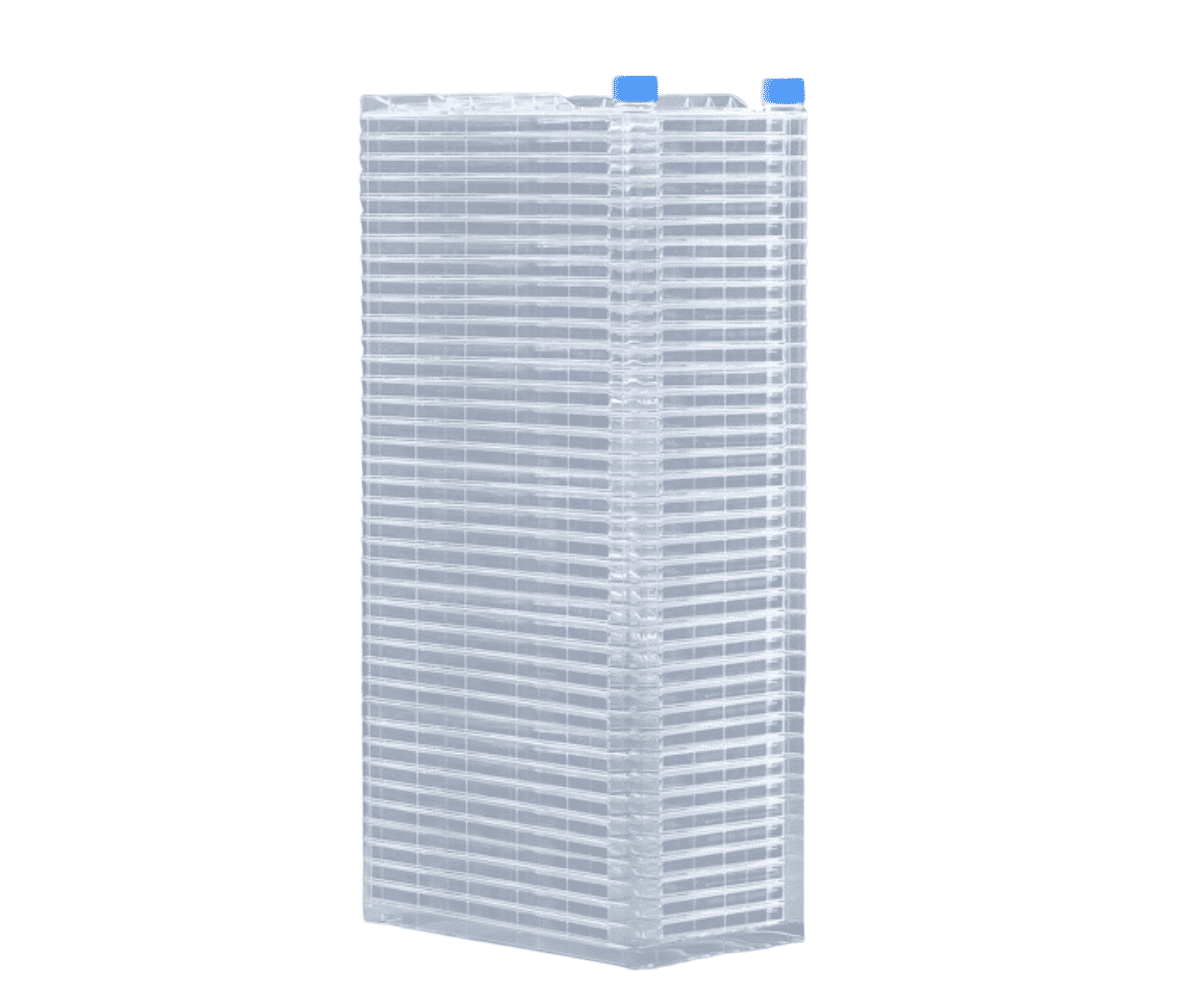

            Multi-layers Cell factory

            Multi-layers cell factory is the adherent cells’ ideal choice for industrial mass production, laboratory operations,and large-scale cell cultures. Compared with other brands, GVS cell factory has good per-formance in culture.

            Product Specification

            Ask for information

            Property

            Polystyrene (PS) material meet USP VI medical grade. Combined with heat treatment process of injection molding, the toughness product is not easy to be damaged while transferring.

            Meanwhile,the product has undergone a three-level sealing test before delivery to ensure airtightness.

            The production processes in Class-C workshop to conplies with IS013485 by using professional automatic production line.

            With the perfect quality management system, each batch of products has been tested to ensure the consistency and stability of product performance between differentbatches.

            Double wild-mouth design improves the speed of filling and harvesting liquid, with hardly bubbles, Also conducive for gas exchange and high-density cell culture.

            Equipped with quick-fit seal cap (patented product), it can switch between airtight and breathable state in conventional environment(greenhouse) to meet the needs of dissolved oxygen and exhaust in different culture stages of cells and viruses.

            The cell-factory is equipped with a complete set of sealed pipeline system, which can be connected with the liquid inlet and receiving system pipeline, and the liquid input and output are carried out by peristaltic pumps or pressure systems.

            Characteristics

            Type A
            TC treated seal cap
            Type B
            TC treated vent cap

            Product Variants

            Multiple versions of Multi-layers Cell factory are available.

            Product Variants

            20 available results

            1. CELCUFG010001S
              TC treated seal cap
              Culture area (cm2)
              635
              Length (mm)
              335
              Width (mm)
              205,5
              Height (mm)
              48
              pcs/pack
              1
              pcs/case
              8
              Layer
              1
            2. CELCUFG010002S
              TC treated seal cap
              Layer
              2
              Culture area (cm2)
              1270
              Length (mm)
              335
              Width (mm)
              205.5
              Height (mm)
              65
              pcs/pack
              1
              pcs/case
              8
            3. CELCUFG010005S
              TC treated seal cap
              Layer
              5
              Culture area (cm2)
              3175
              Length (mm)
              335
              Width (mm)
              205.5
              Height (mm)
              116
              pcs/pack
              1
              pcs/case
              6
            4. CELCUFG010010S
              TC treated seal cap
              Layer
              10
              Culture area (cm2)
              6350
              Length (mm)
              335
              Width (mm)
              205.5
              Height (mm)
              201
              pcs/pack
              1
              pcs/case
              4
            5. CELCUFG010040S
              TC treated seal cap
              Layer
              40
              Culture area (cm2)
              25400
              Length (mm)
              335
              Width (mm)
              205.5
              Height (mm)
              711
              pcs/pack
              1
              pcs/case
              2
            6. CELCUFG011001S
              TC treated vent cap
              Layer
              1
              Culture area (cm2)
              635
              Length (mm)
              335
              Width (mm)
              205.5
              Height (mm)
              48
              pcs/pack
              1
              pcs/case
              8
            7. CELCUFG011002S
              TC treated vent cap
              Layer
              2
              Culture area (cm2)
              1270
              Length (mm)
              335
              Width (mm)
              205.5
              Height (mm)
              65
              pcs/pack
              1
              pcs/case
              8
            8. CELCUFG011005S
              TC treated vent cap
              Layer
              5
              Culture area (cm2)
              3175
              Length (mm)
              335
              Width (mm)
              205.5
              Height (mm)
              116
              pcs/pack
              1
              pcs/case
              6
            9. CELCUFG011010S
              TC treated vent cap
              Layer
              10
              Culture area (cm2)
              6350
              Length (mm)
              335
              Width (mm)
              205.5
              Height (mm)
              201
              pcs/pack
              1
              pcs/case
              4
            10. CELCUFG011040S
              TC treated vent cap
              Layer
              40
              Culture area (cm2)
              25400
              Length (mm)
              335
              Width (mm)
              205.5
              Height (mm)
              711
              pcs/pack
              1
              pcs/case
              2
            11. CELCUFG012001S
              Non-TC treated seal cap
              Layer
              1
              Culture area (cm2)
              -
              Length (mm)
              335
              Width (mm)
              205.5
              Height (mm)
              48
              pcs/pack
              1
              pcs/case
              8
            12. CELCUFG012002S
              Non-TC treated seal cap
              Layer
              2
              Culture area (cm2)
              -
              Length (mm)
              335
              Width (mm)
              205.5
              Height (mm)
              65
              pcs/pack
              1
              pcs/case
              8
            13. CELCUFG012005S
              Non-TC treated seal cap
              Layer
              5
              Culture area (cm2)
              -
              Length (mm)
              335
              Width (mm)
              205.5
              Height (mm)
              116
              pcs/pack
              1
              pcs/case
              6
            14. CELCUFG012010S
              Non-TC treated seal cap
              Layer
              10
              Culture area (cm2)
              -
              Length (mm)
              335
              Width (mm)
              205.5
              Height (mm)
              201
              pcs/pack
              1
              pcs/case
              4
            15. CELCUFG012040S
              Non-TC treated seal cap
              Layer
              40
              Culture area (cm2)
              -
              Length (mm)
              335
              Width (mm)
              205.5
              Height (mm)
              711
              pcs/pack
              1
              pcs/case
              2
            16. CELCUFG013001S
              Non-TC treated vent cap
              Layer
              1
              Culture area (cm2)
              -
              Length (mm)
              335
              Width (mm)
              205.5
              Height (mm)
              48
              pcs/pack
              1
              pcs/case
              8
            17. CELCUFG013002S
              Non-TC treated vent cap
              Layer
              2
              Culture area (cm2)
              -
              Length (mm)
              335
              Width (mm)
              205.5
              Height (mm)
              65
              pcs/pack
              1
              pcs/case
              8
            18. CELCUFG013005S
              Non-TC treated vent cap
              Layer
              5
              Culture area (cm2)
              -
              Length (mm)
              335
              Width (mm)
              205.5
              Height (mm)
              116
              pcs/pack
              1
              pcs/case
              6
            19. CELCUFG013010S
              Non-TC treated vent cap
              Layer
              10
              Culture area (cm2)
              -
              Length (mm)
              335
              Width (mm)
              205.5
              Height (mm)
              201
              pcs/pack
              1
              pcs/case
              4
            20. CELCUFG013040S
              Non-TC treated vent cap
              Layer
              40
              Culture area (cm2)
              -
              Length (mm)
              335
              Width (mm)
              205.5
              Height (mm)
              711
              pcs/pack
              1
              pcs/case
              4
